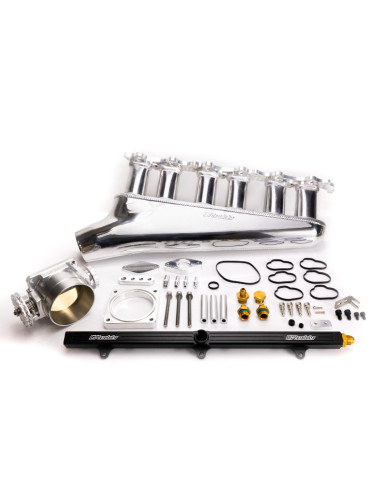

GReddy Intake Plenum for Toyota 2JZ-GTE (Surge Tank)

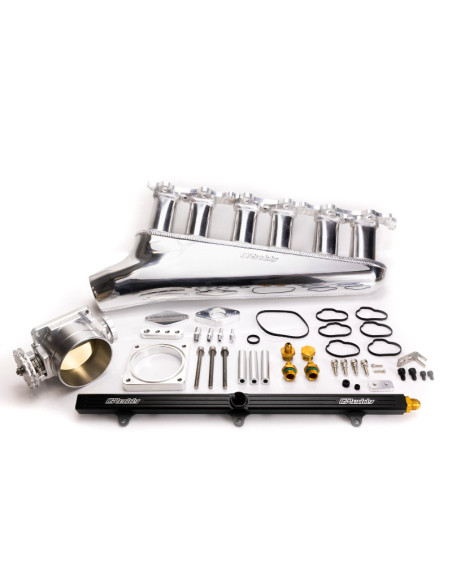

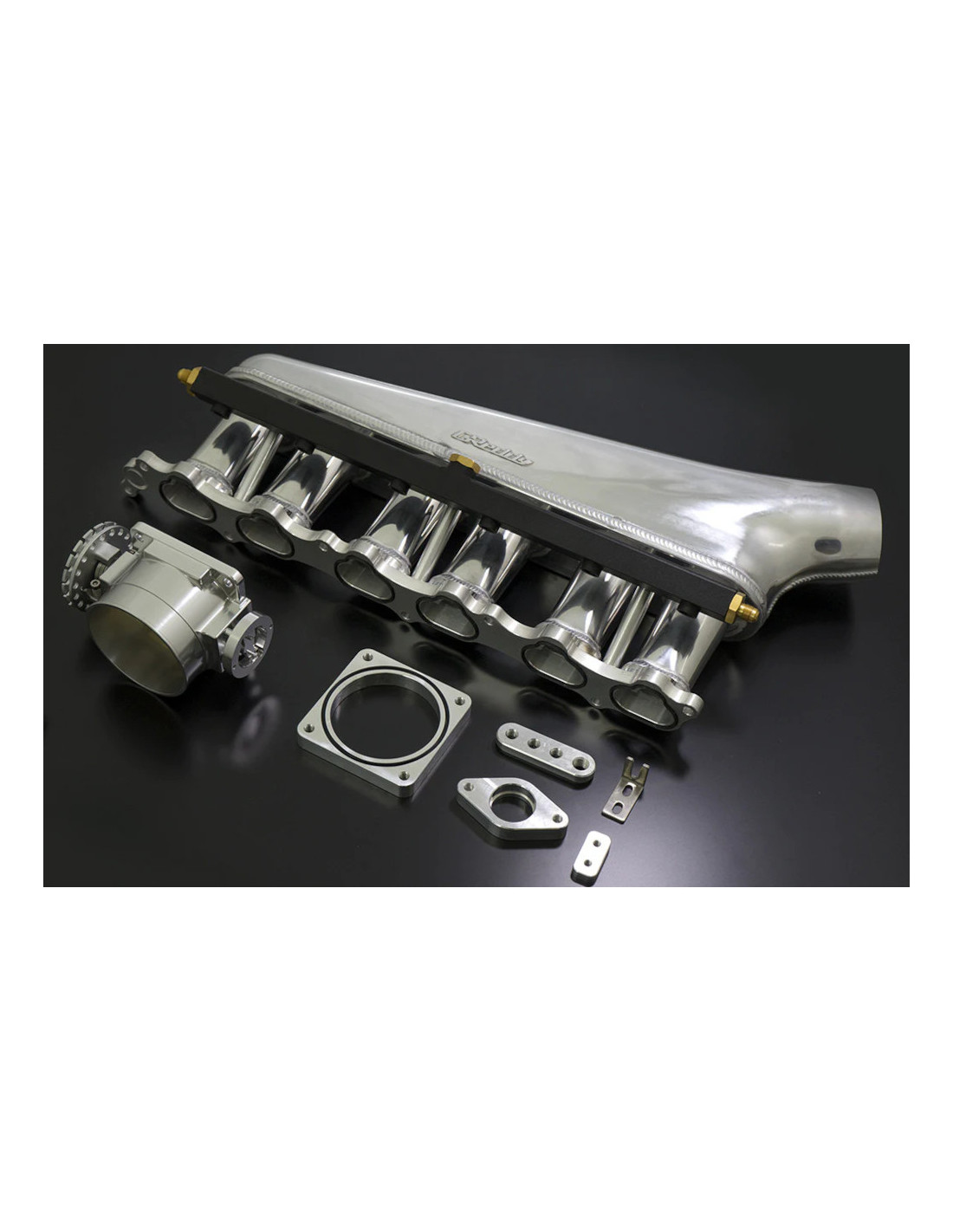

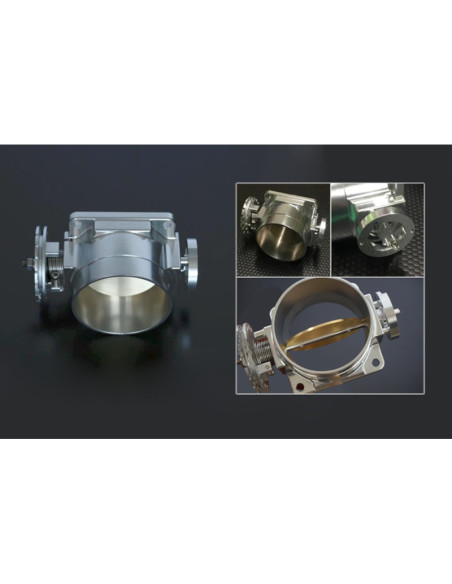

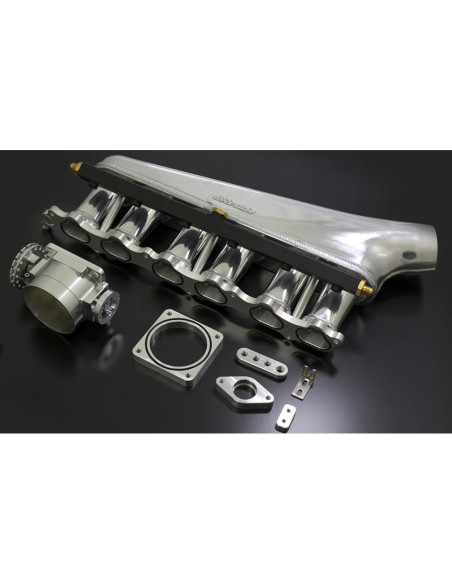

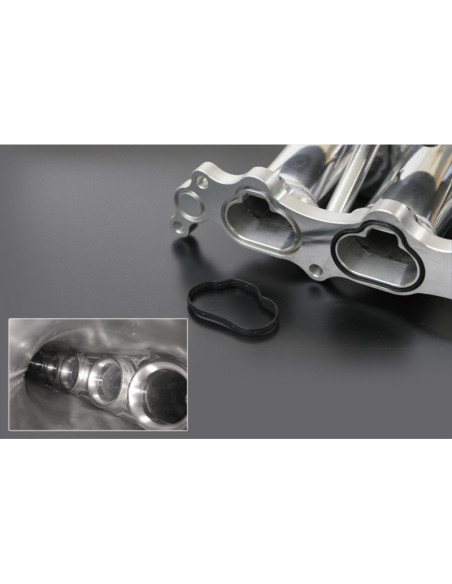

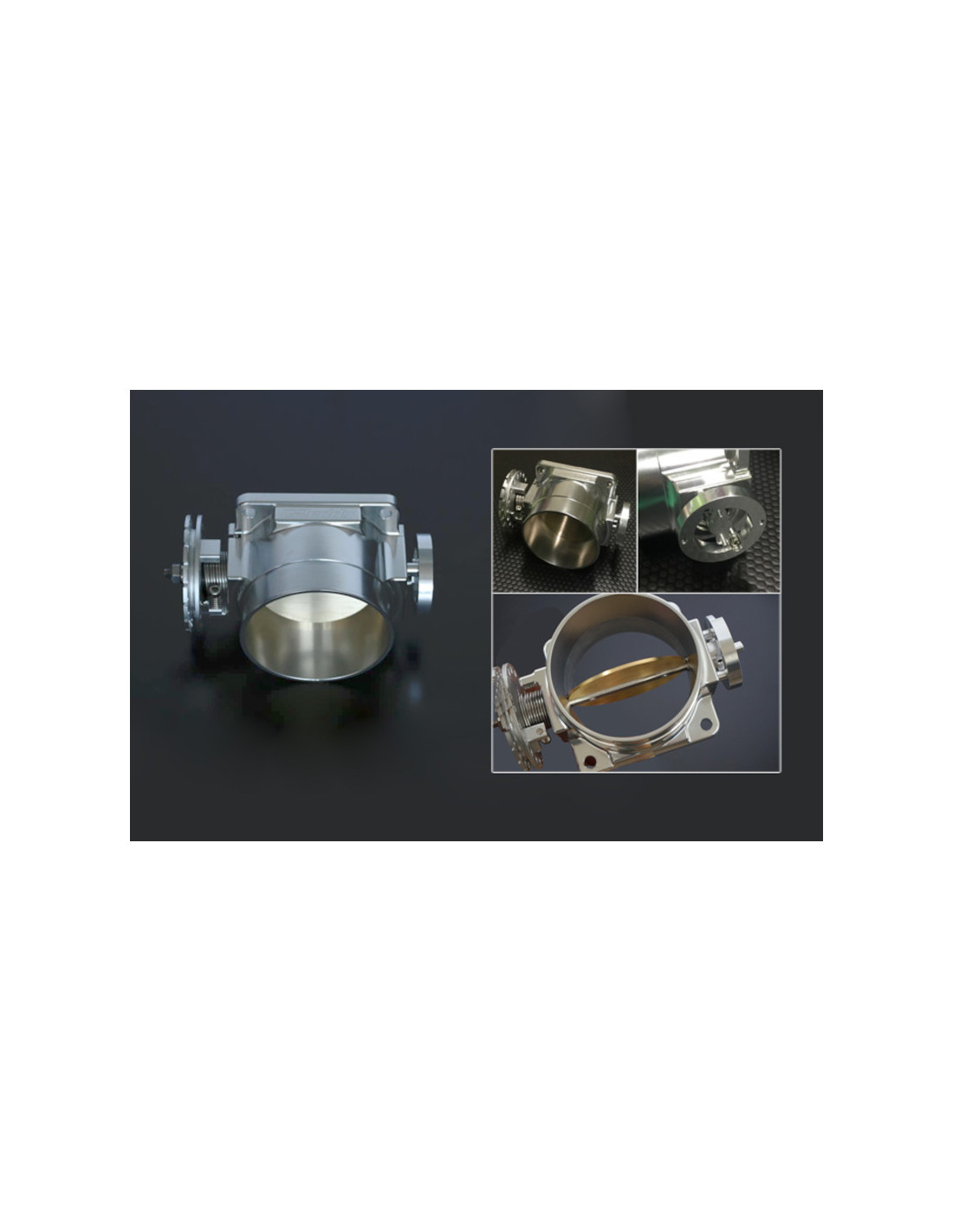

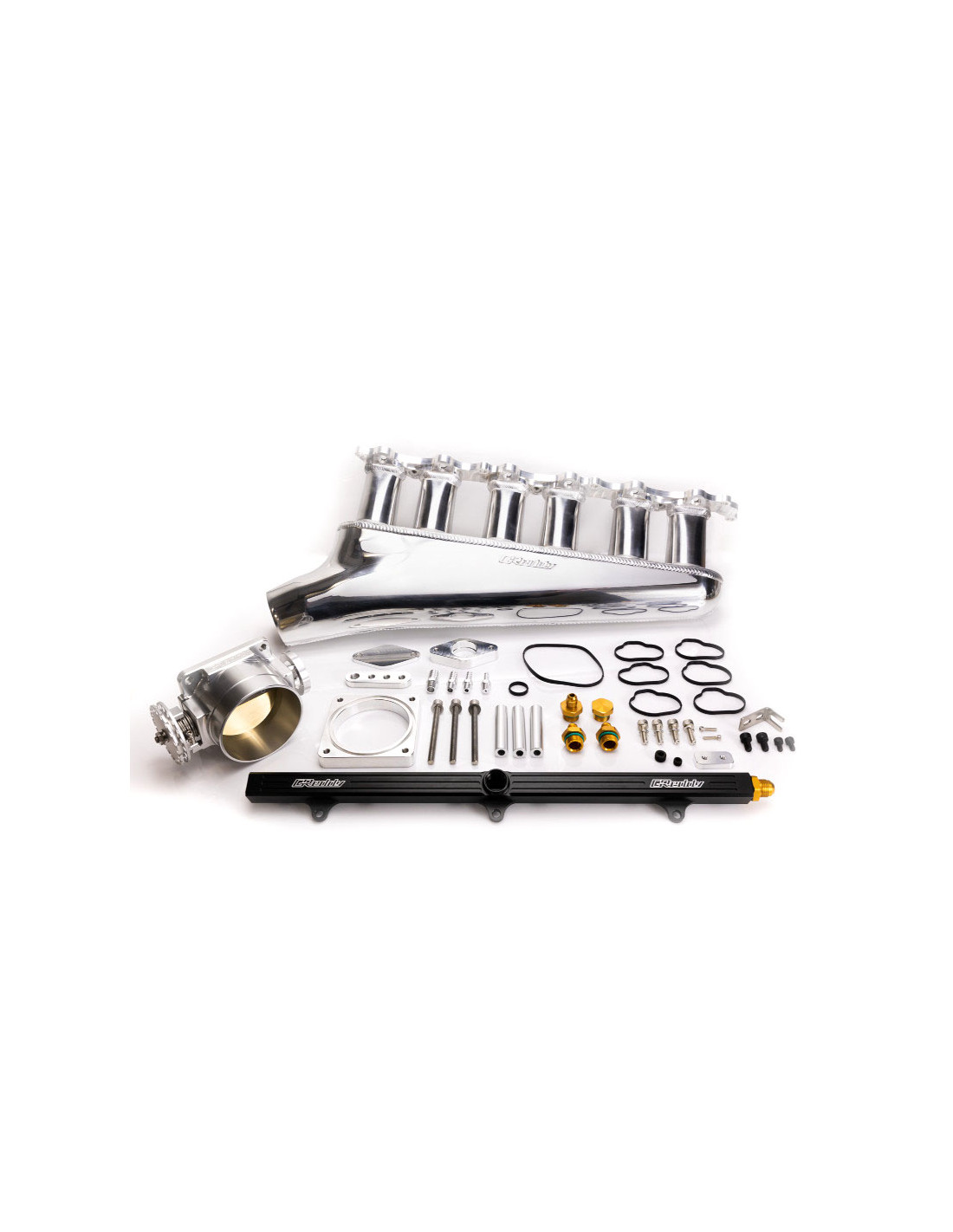

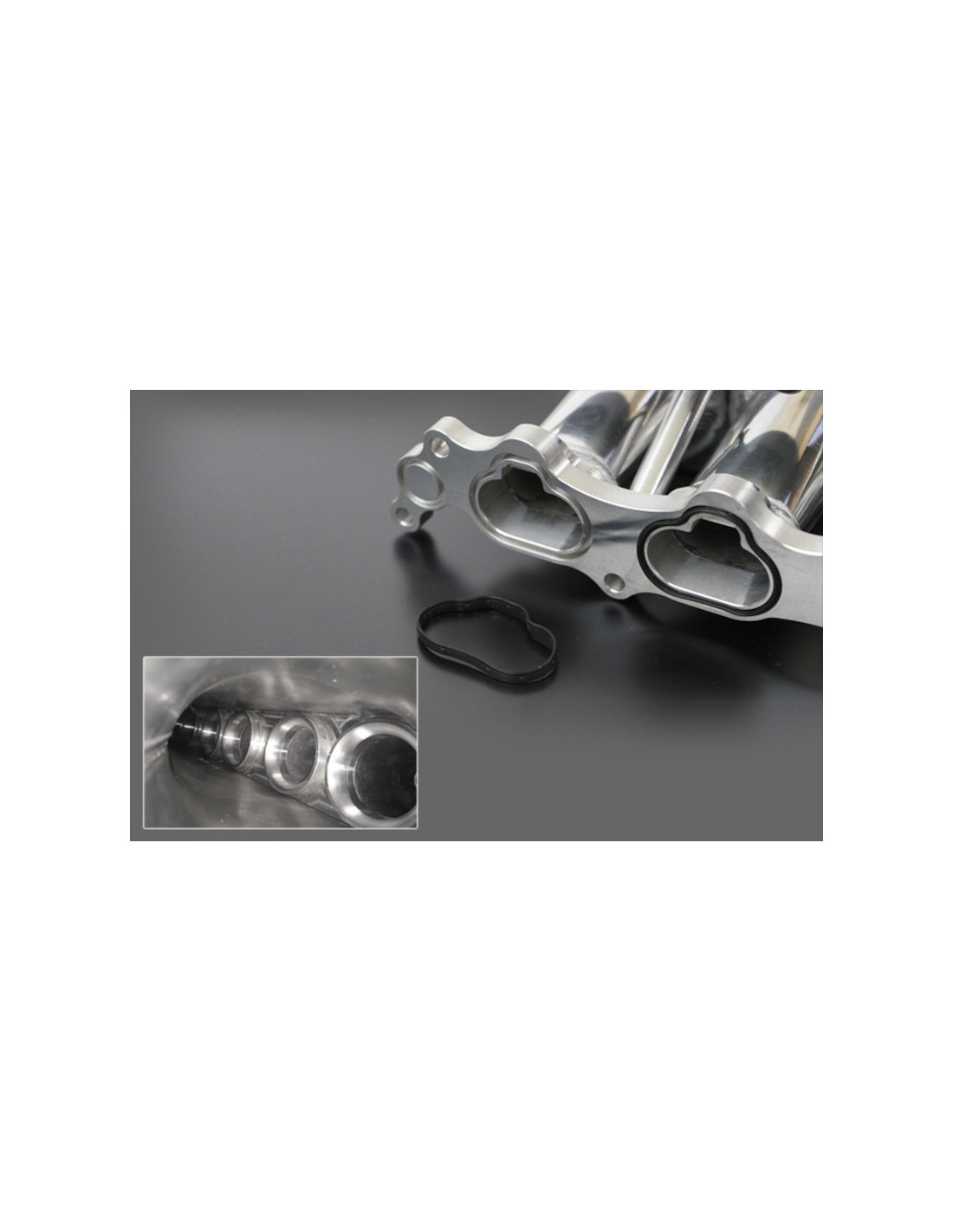

GReddy Surge Tank / Intake PlenumFor Toyota 2JZ-GTEMaximises air supply to the engineCompatible with high boost pressures4 L collector tank capacity90 mm throttle bodyFuel rail for 14 mm top feed injectorsPerfect for swaps and custom setupsMade in JapanGReddy part no. : 13512303 GReddy Surge Tank Pro Kit for Toyota 2JZ-GTE SpecificationsDesigned specifically for custom builds powered by the Toyota 2JZ-GTE engine this GReddy Pro kit offers the versatility to perfectly match the throttle body inlet angle and the air/vacuum ports of your engine bay. It features a 4-litre tank with a large 90mm throttle body a top feed fuel rail and the necessary weld-on flanges.Precision-welded and machined the highly rigid plenum uses 3mm-thick aluminium to withstand high boost pressures and features six individual internal velocity stacks. Carefully designed primary runners also help increase airflow to maximise engine intake efficiency.Key Features4-litre capacity collector tank (normal ratio 200%)Tuned internal velocity stacks on each runnerPrimary runner length 130mm OD 14.0mm ID 13.0mmSpecific O-rings for maximum manifold/head sealingThrottle-body hose diameter 100mm internal butterfly diameter 90mm with low-profile throttle shaftFuel rail for 14mm top feed injectors (e.g. compatible with Nissan R35 VR38DETT factory injectors)Compatible with OEM factory ICV (Idler Control Valve) and TPS (Throttle Position Sensor)Please note : Welding required to attach throttle body flange throttle cable mount and air port flanges.Kit ContentsSurge tankThrottle bodyThrottle flangeFuel delivery tube and mounts
